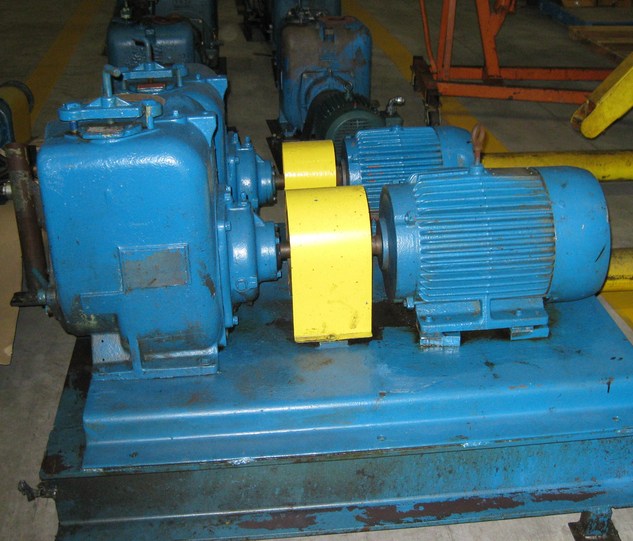

ITEM #

GR-U3B60

Type: Self Priming Pump

Manufacturer: Gorman Rupp

Model: U3B60-B

Series: U

HP  15 at 230/460 volt motor

RPM  1800  - 3 phase motor

Year: n/a

Material: cast iron

WEIGHT: 450 lbs with base and motor



Drawings Available Upon Request

Spare Parts: n/a

Condition: good, used

Location: Minnesota USA

Availability: Immediately

Buyer responsible for shipping and special crating if needed





TECHNICAL INFORMATION BELOW

PUMP DRAWING: http://pumpshopafrica.co.za/pdf/u3-dimension.pdf



PUMP FLOW CHART: http://pumpshopafrica.co.za/pdf/U3B60S-B.pdf



Request More Information

PUMP SPECIFICATIONS:

Size: 3” x 3” (76 mm x 76 mm) NPT - Female.
Casing: Gray Iron No. 30. Maximum Operating Pressure
139 psi (958 kPa).*
Semi-Open Type, Six Vane Impeller: Ductile Iron 65-45-12.
Handles 13/16” (20,6 mm) Diameter Spherical Solids.
Impeller Shaft: Alloy Steel No. 4140.
Replaceable Wear Plate: Gray Iron No. 30.
Removable Adjustable Cover Plate: Gray Iron No. 30; 48 lbs. (22 kg).
Bearing Housing: Gray Iron No. 30.
Seal Plate: Gray Iron No. 30.
Shaft Sleeve: Alloy Steel No. 4130.
Flap Valve: Neoprene w
/Nylon and Steel Reinforcing.
Radial Bearing: Open Single Ball.
Thrust Bearing: Open Double Ball.
Bearing and Seal Cavity Lubrication: SAE No. 30 Non-Detergent Oil.
Flanges: 125# Gray Iron No. 30.
Gaskets: Cork, Rubber, Vegetable Fiber, PTFE, Buna-N with
Compressed Synthetic Fibers.
O-Rings: Buna-N.
Hardware: Standard Plated Steel.
Brass Pressure Relief Valve.
Bearing and Seal Cavity Oil Level Sight Gauges.
Optional Equipment: Stainless Steel No. 316 Pressure Relief
Valve. G-R Hard Iron Impeller, Seal Plate, and Wear Plate.
Automatic Air Release Valve. 120V/240V Casing Heater. High
Pump Temperature Shutdown Kit.
Gray Iron No. 30 Suction and Discharge Spool Flanges:
3” ASA (Specify Model U3B60S ---B /F).
80 mm DIN 2527: (Specify Model U3B60S ---B /FM)

____________________________________________

USED GORMAN RUPP 3U 60 SERIES PUMPS FOR TRASH PUMPING
